STONE ATTACHMENTS
ANCHORS DRILL BITS DRILL MACHINES
The HB11 and T31 undercut bolts are designed for attachments on the rear surfaces of stone panels. This method of attachment becomes necessary when the use of conventional pin system is not suitable. The undercut stone attachment method has advantages which can result in various benefits in panel material cost and installation time. RW Elements provides service in the design and technical support for using these systems.
Advantages
More freedom in facade design and anchor positioning
No need for expensive drilling equipment
Fine adjustment is possible
Fast and easy installation
ANCHORS - STONE ATTACHMENTS
Z Anchors are the most conventional and common method of fixing systems used for natural stone installation. With their three-dimensional adjustability, Z anchors allow the quick and easy installation of natural stone slabs both at the horizontal and vertical joints. Z Anchors are recommended for use on projection sizes between 45 to 135 mm and depending on the design, they have a load capacity of up to 800 N. Z anchors are fixed to concrete walls with expansion bolts and also can be set on to channels with hex bolts or lock nuts.
HRD02-E Mortar Anchor
HZ02-E Z Anchor
HZ20-E Z Anchor
DRILL BITS
HZ08-E Z Anchor
Non Core Drill Bit
Non Core Drill M6 Drill Bit
Non Core Drill M8 Drill Bit
Non Core Drill M12 Drill Bit

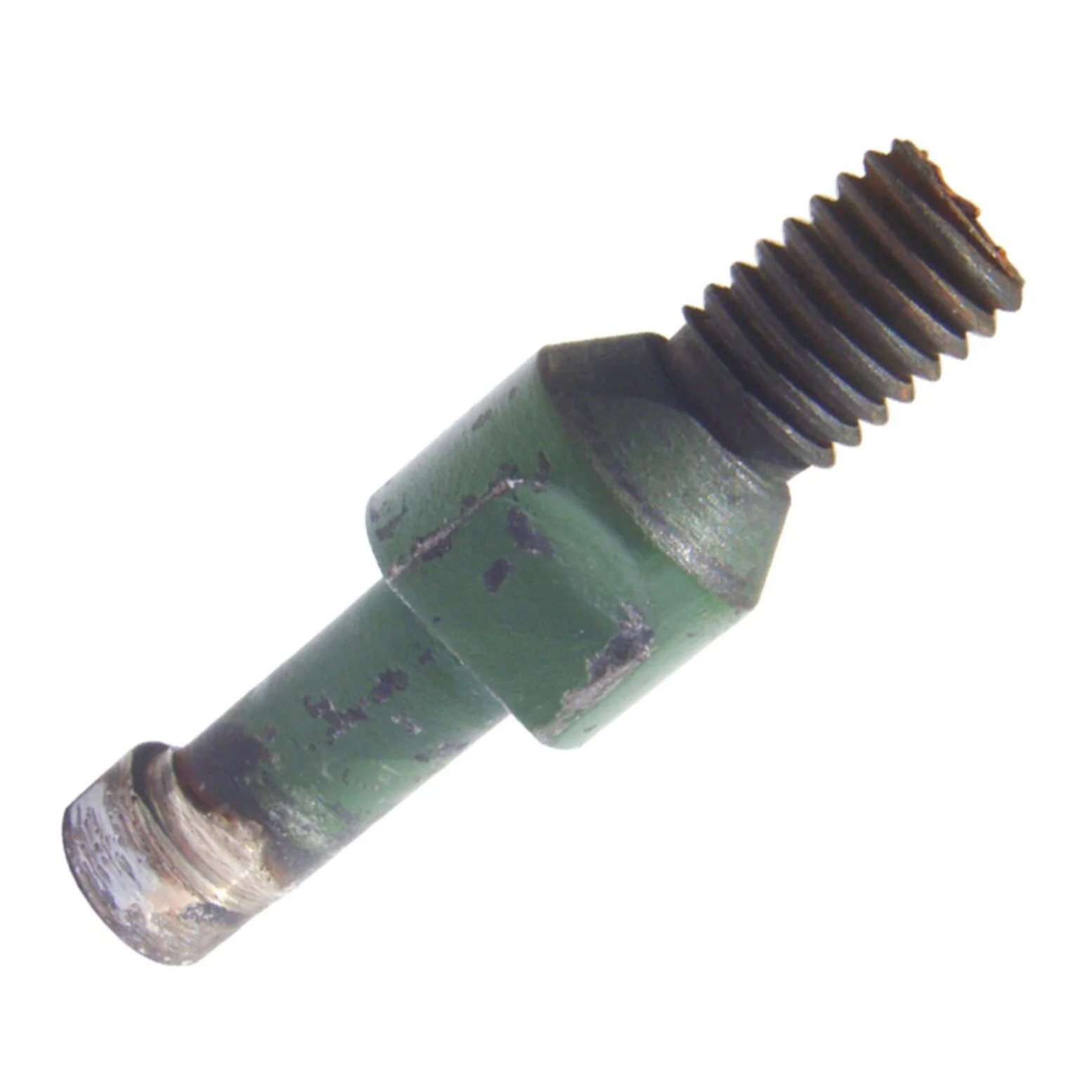

Special Drill
T31-M8 Drill Bit
T31-M10 Drill Bit
DRILL MACHINES
HZ-MC-09 Drill Machine
HZ-MC-10 Drill Machine
HZ-MC-PN Drill Machine
HZ-MC-T31 Drill Machine
